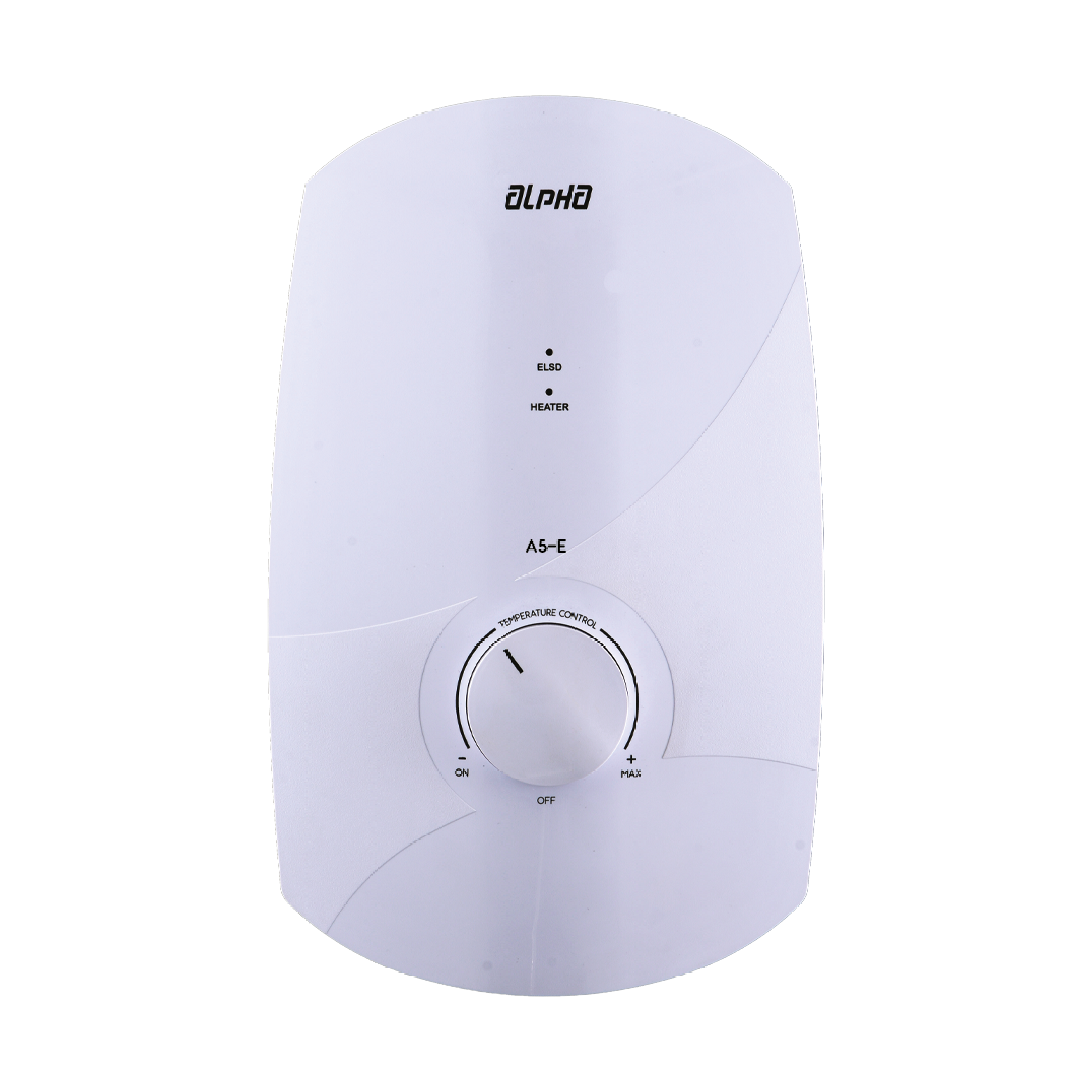

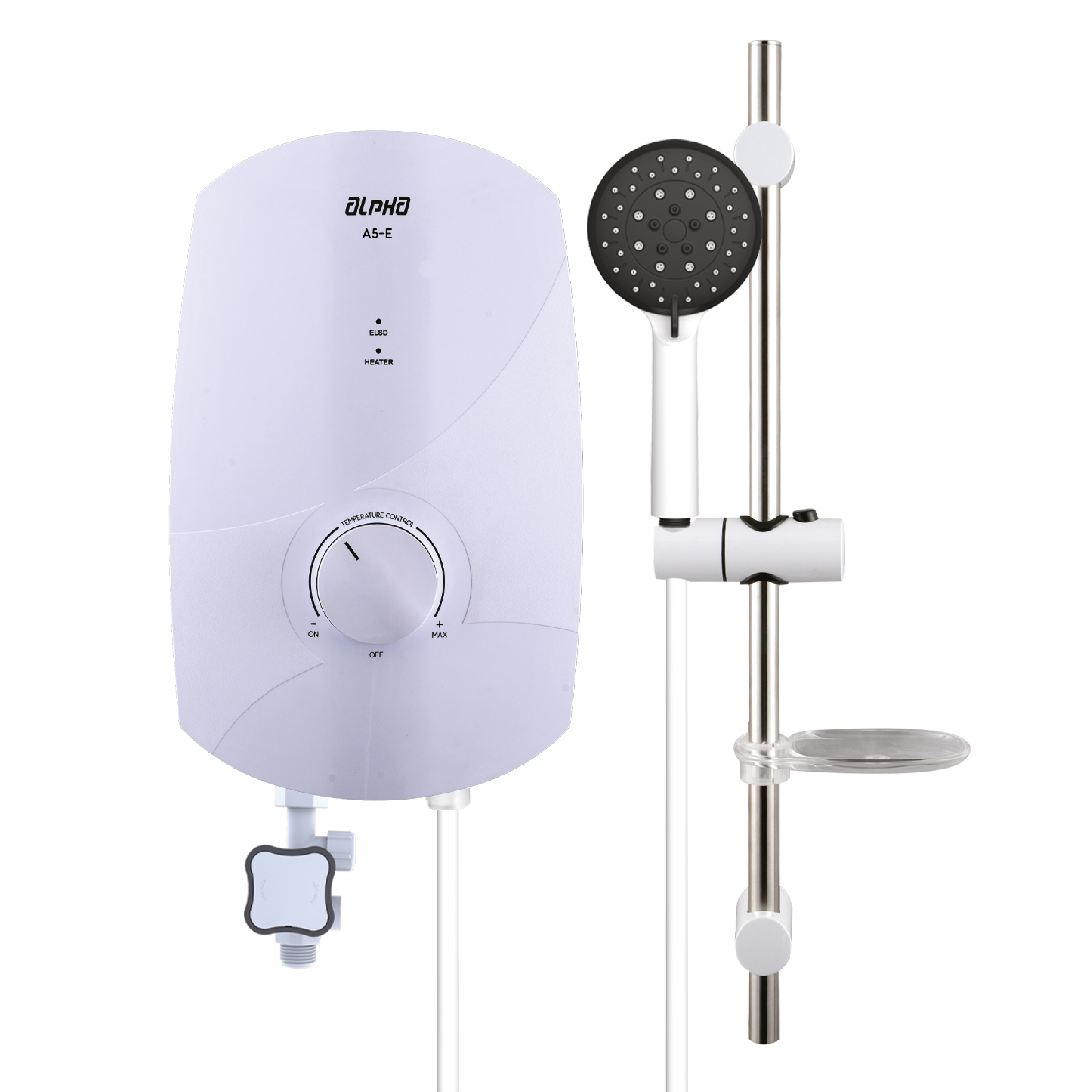

A5-E
Features
 |
ELSD (Earth Leakage Sensing Device)Cuts off electric supply in the event of any current leakage. |
|
Splash-Proof IP25 StandardProtection against water seeping into the heater’s internal mechanism. |
 |
|
 |
Electronic Stepless Temperature ControlShower temperature can be selected according to personal preference. |
|
Flow Switch SystemMinimum operating water flow of 3 litres / minute. |
 |
|
 |
Thermal Cut-OutPrevents scalding. |
Technical Specification
Electrical Rating
| Heater Rating | 3.0 – 5.5kW 200 – 240V |
| Operating Condition | Open Outlet |
| Protection Against Electric Shock | Class 1 |
| Water Temperature Control | Electronics |
| Degree of Protection | IP25 |
| Minimum Flow Rate | 2 litre / min (3 litre / min for 5.5kW) |
| Minimum Pressure | 20kPa (0.2 bar / 2.9 psi) |
| Maximum Pressure | 0.38Mpa (3.8 bar / 55 psi) |
| Heater Dimension | 230mm (W) x 370mm (L) x 91.4mm (H) |
| Heater Nett Weight | 1.4kg |
*Specifications and products shown are correct at the time of printing and may subject to change without prior notice.

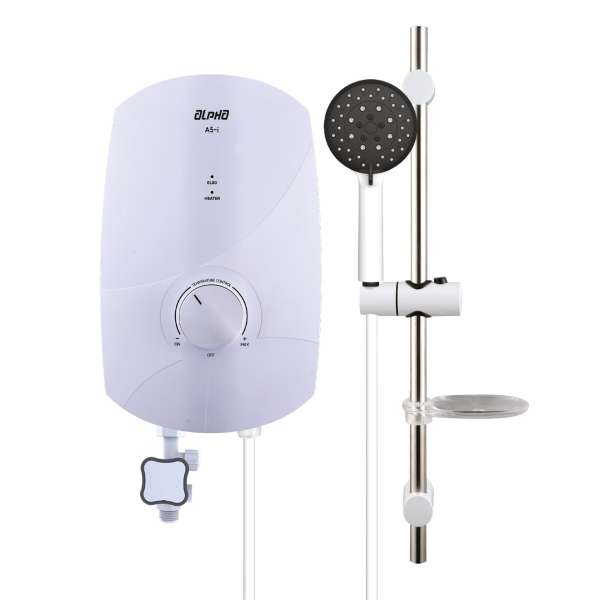

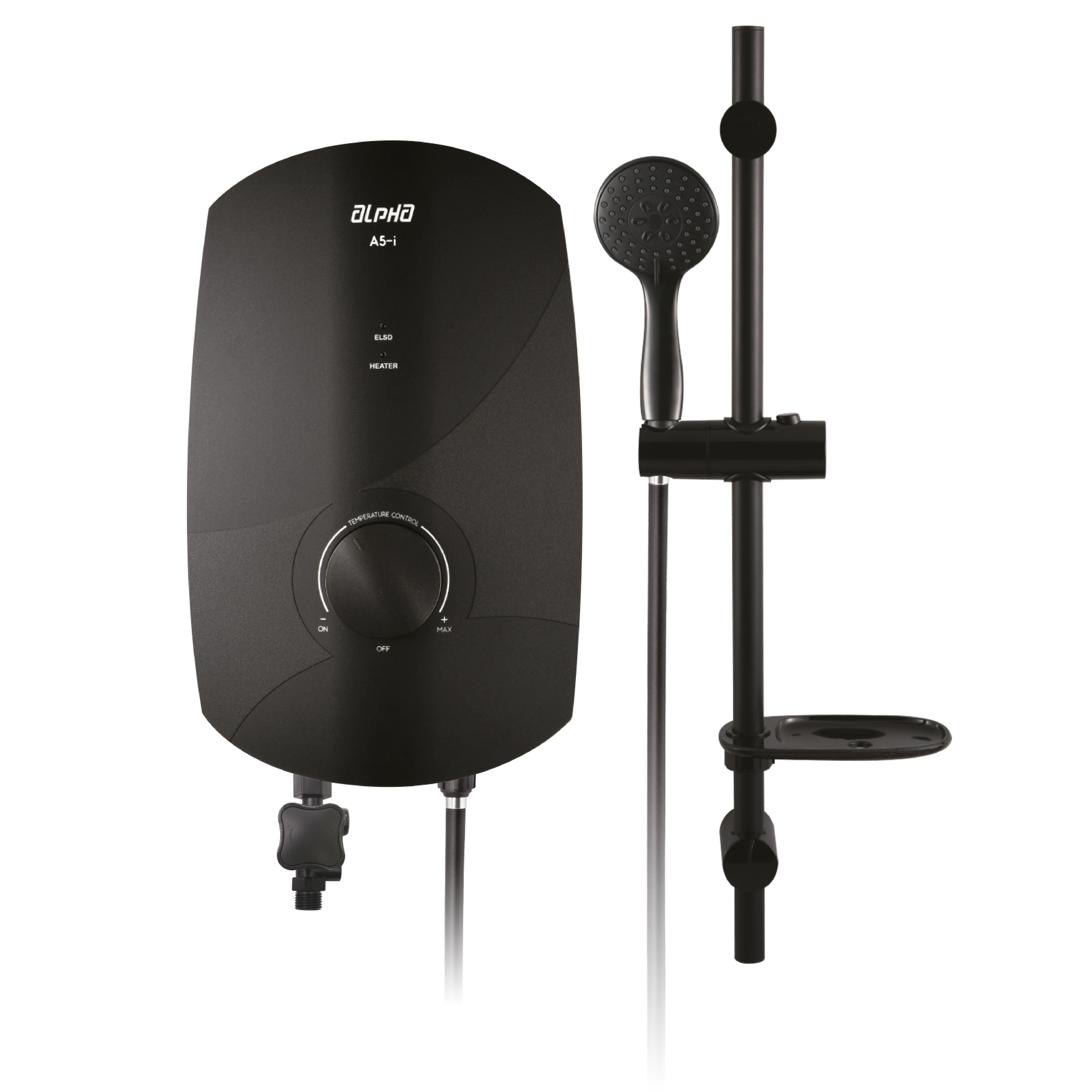

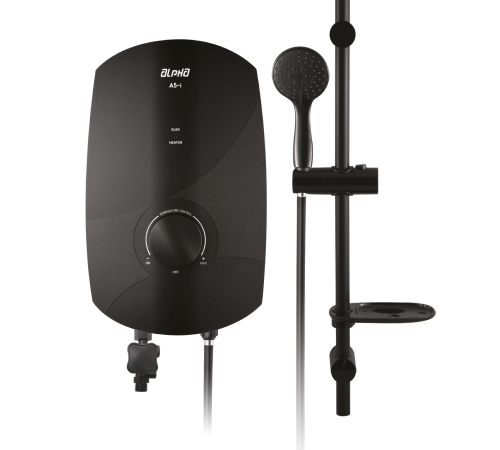

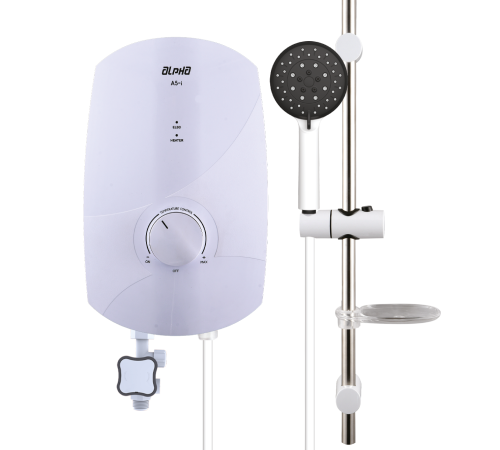

A5-i
Features
| |
ELSD (Earth Leakage Sensing Device)Cuts off electric supply in the event of any current leakage. |
|
Splash-Proof IP25 StandardProtection against water seeping into the heater’s internal mechanism. |
|
|
|
Electronic Stepless Temperature ControlShower temperature can be selected according to personal preference. |
|
Flow Switch SystemMinimum operating water flow of 3 litres / minute. |
|
|
|
Thermal Cut-OutPrevents scalding. |
|
DC Inverter PumpPowerful water delivery with maximum energy savings, maintenance free usage and true silent operation. |
 |
Technical Specification
Electrical Rating
| Heater Power Rating | 3.0 – 5.5kW 200 – 240V |
| Operating Condition | Open outlet |
| Pump Type | DC Pump |
| Pump Rating | 55W |
| Noise Level | <40dB |
| Protection Against Electric Shock | Class 1 |
| Water Temperature Control | Electronics |
| Degree of Protection | Class IP25 |
| Minimum Flow Rate | 2 litre / min (3 litre / min for 5.5kW) |
| Minimum Pressure | 20kPa (0.2 bar / 2.9 psi) |
| Maximum Pressure | 0.38Mpa (3.8 bar / 55 psi) |
| Heater Dimension | 230mm (W) x 370mm (L) x 91.4mm (H) |
| Nett Weight | 1.6 kg |
*Specifications and products shown are correct at the time of printing and may subject to change without prior notice.
